Standard/Non-standard 35CrMo flanged joint universal coupling

  • 1 - 49 Pieces
    $30.25
  • 50 - 199 Pieces
    $30.00
  • 200 - 999 Pieces
    $28.85
  • >=1000 Pieces
    $27.50
Model Number:
SWC-I SWC SWCZ SWCD
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 500 501 - 2000 2001 - 10000 >10000
Est. Time(days) 60 75 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Structure:
Universal
Flexible or Rigid:
Rigid
Standard or Nonstandard:
Standard
Material:
Steel
Brand Name:
SIMIS
Place of Origin:
Shanxi, China
flange:
58-225 mm
pass the rated torque range:
150-22000 N.m
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wooden pallet or according to customer requirements
Port
Tianjin port
Lead Time :
Quantity(Pieces) 1 - 500 501 - 2000 2001 - 10000 >10000
Est. Time(days) 60 75 90 To be negotiated
Video Description
Product Description

SIMIS universal shaft couplings

Smoother/higher performance/easier maintenance

Flexible rotation
In the process of operation, the joint rotates flexibly and there is no lag.Spline pair expansion and contraction, high transmission efficiency.

Structure optimization
Drawing lessons from foreign design concepts, the capacity of continuously optimizing structural design to bear alternating torque was increased by 30%

Excellent components
The introduction of advanced processing equipment, ensure the assembly precision of the workpiece, service life increased by 20%, save production costs.

Smooth operation
Special process, ensure the overall coaxiality of 0.5mm;More stable operation, critical speed up to 4000 RPM.

Surface anticorrosion
It can resist the damage of high heat, high temperature radiation, corrosive medium and strong light, and has stronger anti-aging ability on the surface.

Simple maintenance
Excellent double-side sealing design inside the bearing, the service life is more than 12,000 hours;Longer maintenance intervals

Detailed Images

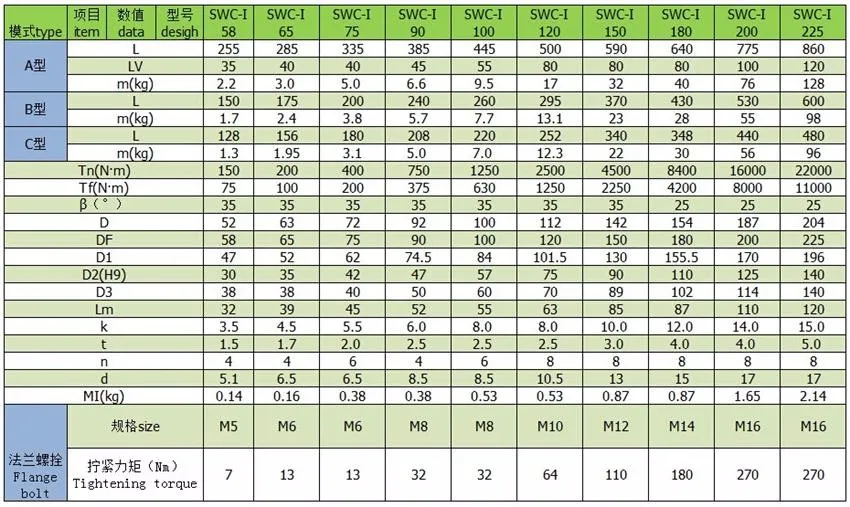

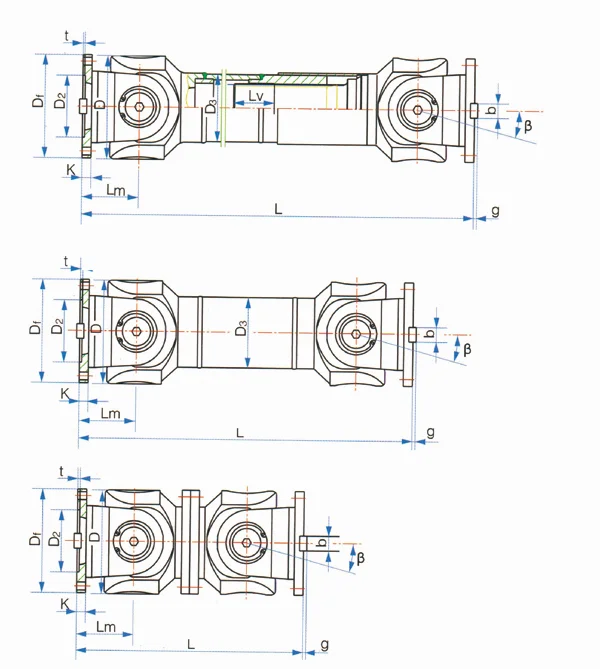

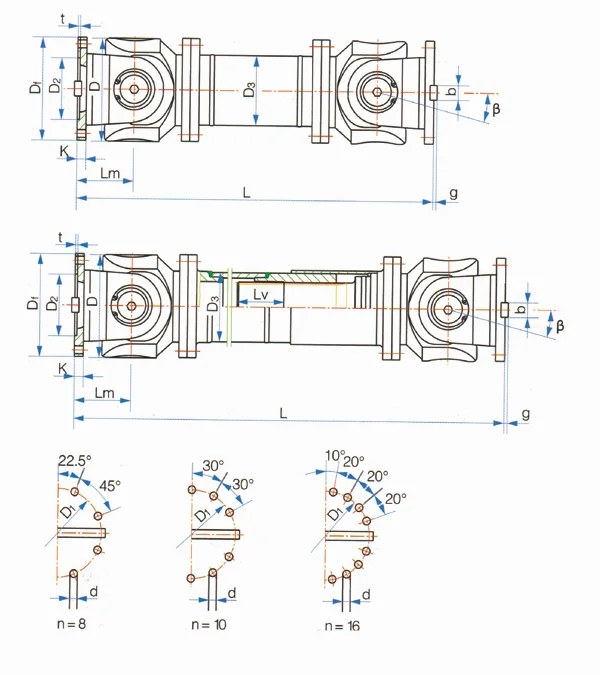

SWC-I Series lightweight universal shaft couplings
Scope of application
Swc-i universal coupling is mainly suitable for paper making equipment, common machinery, water pump equipment and test bench and other general machinery occasions.A system of shafts that connects two different axes.The flange for 58-225 mm in diameter, pass the rated torque range 150-22000 N.m, axis Angle of 25°, 35°.Universal couplings should be selected according to load characteristics, calculated torque, bearing life and working speed.
Structural features
1. Universal coupling makes use of the characteristics of its mechanism, so that the two shafts are not the same axis, there is an Angle between the axis can achieve continuous rotation of the two shafts connected, and reliable transmission of torque and motion.

2. The biggest characteristics of the lightweight universal coupling are: its structure has a large angular compensation ability, small moment of inertia, simple disassembly, low maintenance and other advantages.
Selection and maintenance
We provide one-stop service of light cardan shaft type selection, cardan shaft parameter design and research and development, and cardan shaft production, etc., which are directly supplied by cardan shaft manufacturers, so that you can save time, effort and worry.The company also provides technical guidance on the transportation and storage, installation and use, maintenance and repair of swc-i lightweight universal coupling.
Note: 1. The code names in the above table have the following meanings:
L -- standard length, for the scalable type, the minimum length under the shortened state of the length L series;
Lv-- elongation;
M - quality.
Tn-- nominal torque (take 50% of yield torque);
Tf-- fatigue torque, that is, the allowable torque determined according to fatigue strength under variable bending load;
Beta -- maximum axis folding Angle;
ML -- increase the mass by 100mm.

2. If the unit of measurement is not specified in the above table, it shall be measured in mm;

3. If the user needs to change the standard length, expansion and flange type size, please negotiate with our factory.

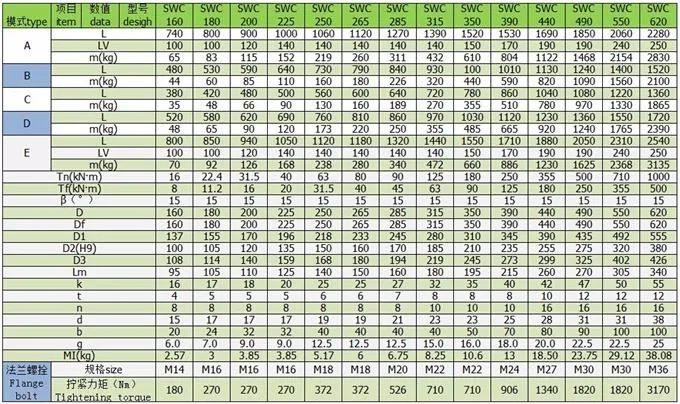

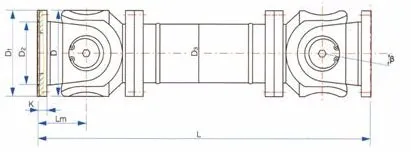

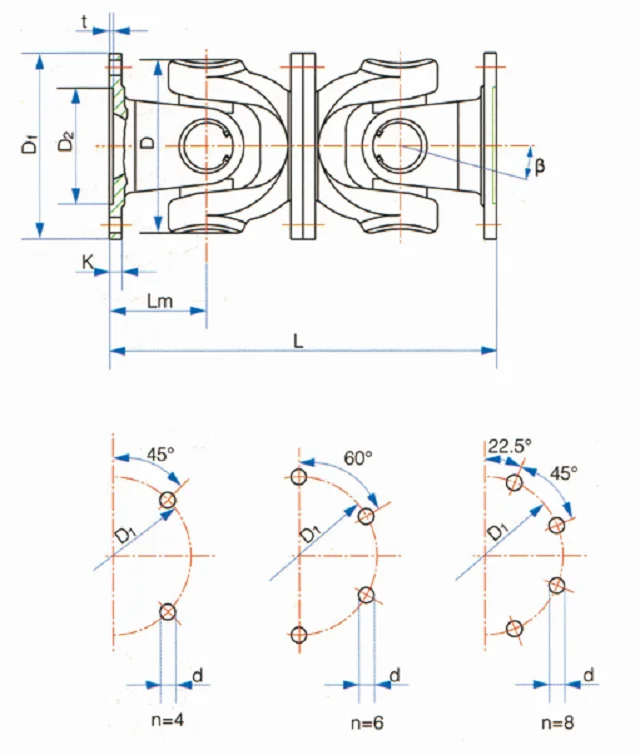

SWC Series middleweight universal shaft couplings
Scope of application

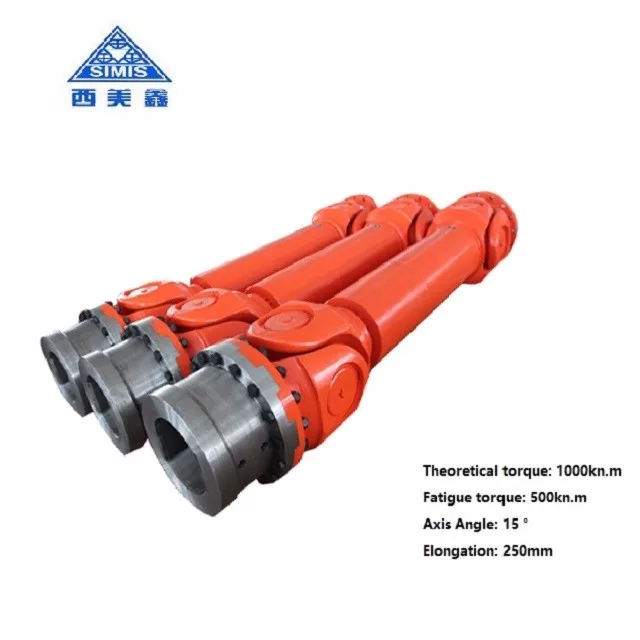

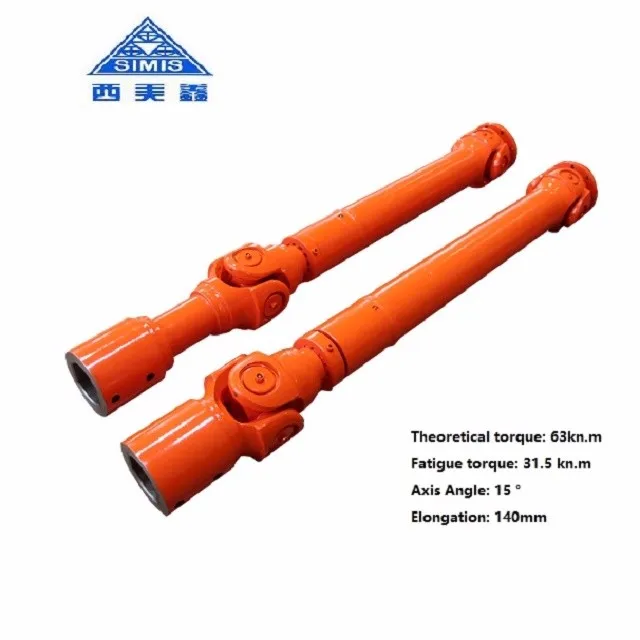

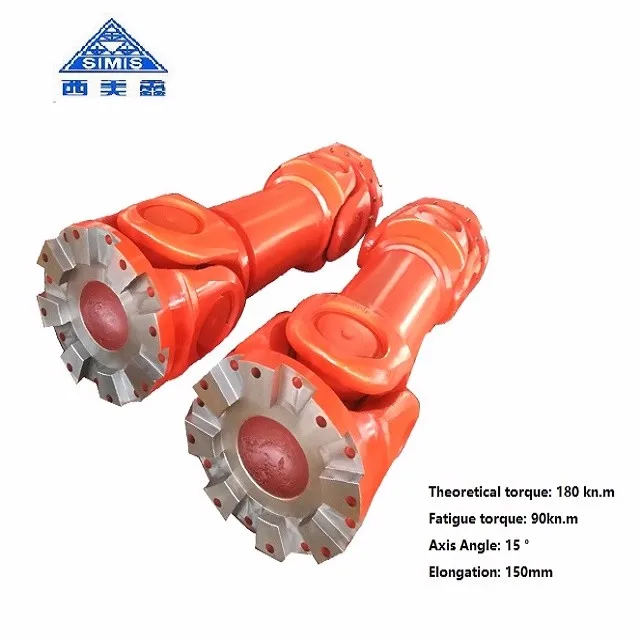

SWC medium universal couplings are widely used in rolling mill, piercing machine, straightening machine, crusher, ship drive and other mechanical applications.The flange is 160-620 mm in diameter, pass the rated torque range of 16-1000 kn. M, the axis Angle is 15 °.
Structural features
1. Universal coupling makes use of the characteristics of its mechanism, so that the two shafts are not the same axis, there is an Angle between the axis can achieve continuous rotation of the two shafts connected, and reliable transmission of torque and motion.

2. The characteristics of medium universal couplings are: compact structure, large transmission torque, long service life, and the ability to be used in bad working conditions for a long time.
Selection and maintenance
According to the JB5513-91 standard, SWC - Ⅰ and SWC type universal coupling type selection reference according to the following method:

The calculated torque can be obtained from equations (1), (2) or (1) and (3) :
Tc=KT                        (1)
T=9550Pw/n            (2)
T=7020Ph/n             (3)

Universal shaft torque calculation formula
1) where: Tc -- calculate torque, N·m;
T -- theoretical torque, N·m;
Pw -- driving power, kW;
PH -- driving power, HP;
N -- working speed, r/min;
K -- working condition coefficient

2)working condition coefficient K
Load property K
Light impact load 1.1-1.3
Medium impact load 1.3-1.8
Heavy impact load 2-3
Heavy impact load 3-5
Extremely heavy impact load 6-15

Note: 1. In general, universal couplings are selected according to the torque transferred and bearing life, or only one item of torsional strength or bearing life can be checked according to the specific requirements of mechanical equipment;

2, when the coupling between the horizontal and vertical plane at the same time there is axis bending Angle, should also calculate its synthetic axis bending Angle;

3. Under some special working environment conditions, the requirements of rotational speed and dynamic balance should be considered in the selection stage of universal coupling;

4, the cross-shaft universal coupling should be selected according to the load characteristics, calculation torque, bearing life and working speed and other related factors.Our company provides one-stop service of medium universal shaft type selection, universal shaft parameter design, research and development, and universal shaft production, etc., which is directly supplied by the manufacturer of universal shaft, so that you can save time, effort and worry.The company also provides technical guidance on transportation, storage, installation and use, maintenance and repair of SWC medium universal coupling.

Note: 1. The code names in the above table have the following meanings:
L -- standard length, for the scalable type, the minimum length under the shortened state of the length L series;
Lv-- elongation;
M - quality.
Tn-- nominal torque (take 50% of yield torque);
Tf-- fatigue torque, that is, the allowable torque determined according to fatigue strength under variable bending load;
Beta -- maximum axis folding Angle;
ML -- increase the mass by 100mm.


2. If the unit of measurement is not specified in the above table, it shall be measured in mm;

3. If the user needs to change the standard length, expansion and flange type size, please negotiate with our factory.

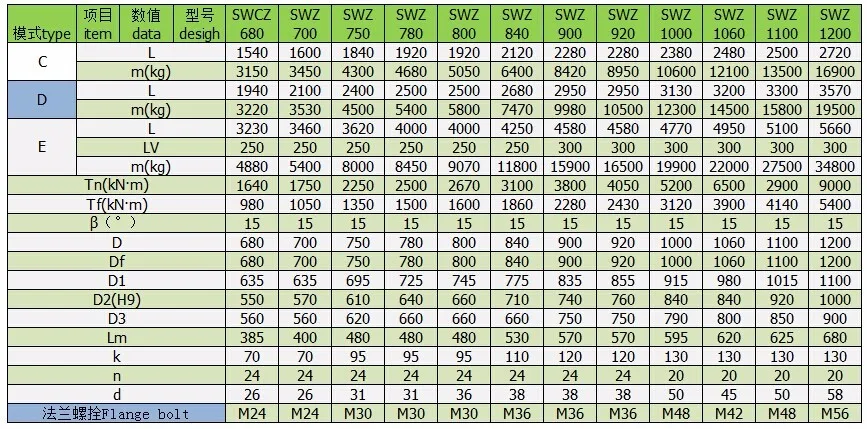

SWCZ Series heavyweight universal shaft couplings
Scope of application
OEM/ODM
Structural features
OEM/ODM
Selection and maintenance
Note: 1. The code names in the above table have the following meanings:
L -- standard length, for the scalable type, the minimum length under the shortened state of the length L series;
Lv-- elongation;
M - quality.
Tn-- nominal torque (take 50% of yield torque);
Tf-- fatigue torque, that is, the allowable torque determined according to fatigue strength under variable bending load;
β-maximum axis bending Angle;
ML -- increase the mass by 100mm.

2. If the unit of measurement is not specified in the above table, it shall be measured in mm;

3. If the user needs to change the standard length, expansion and flange type size, please negotiate with our factory.
